Feature space exploration as an alternative for design space exploration beyond the parametric space

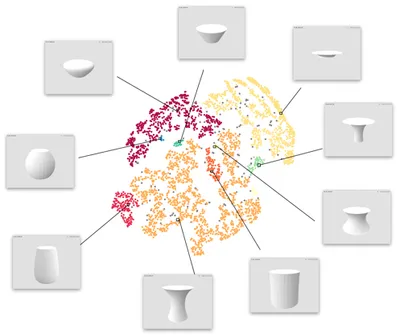

This paper compares the parametric design space with a feature space generated by the extraction of design features using deep learning (DL) as an alternative way for design space exploration. In this comparison, the parametric design space is constructed by creating a synthetic dataset of 15.000 elements using a parametric algorithm and reducing its dimensions for visualization. The feature space - reduced-dimensionality vector space of embedded data features - is constructed by training a DL model on the same dataset. We analyze and compare the extracted design features by reducing their dimension and visualizing the results. We demonstrate that parametric design space is narrow in how it describes the design solutions because it is based on the combination of individual parameters. In comparison, we observed that the feature design space can intuitively represent design solutions according to complex parameter relationships. Based on our results, we discuss the potential of translating the features learned by DL models to provide a mechanism for intuitive design exploration space and visualization of possible design solutions.
